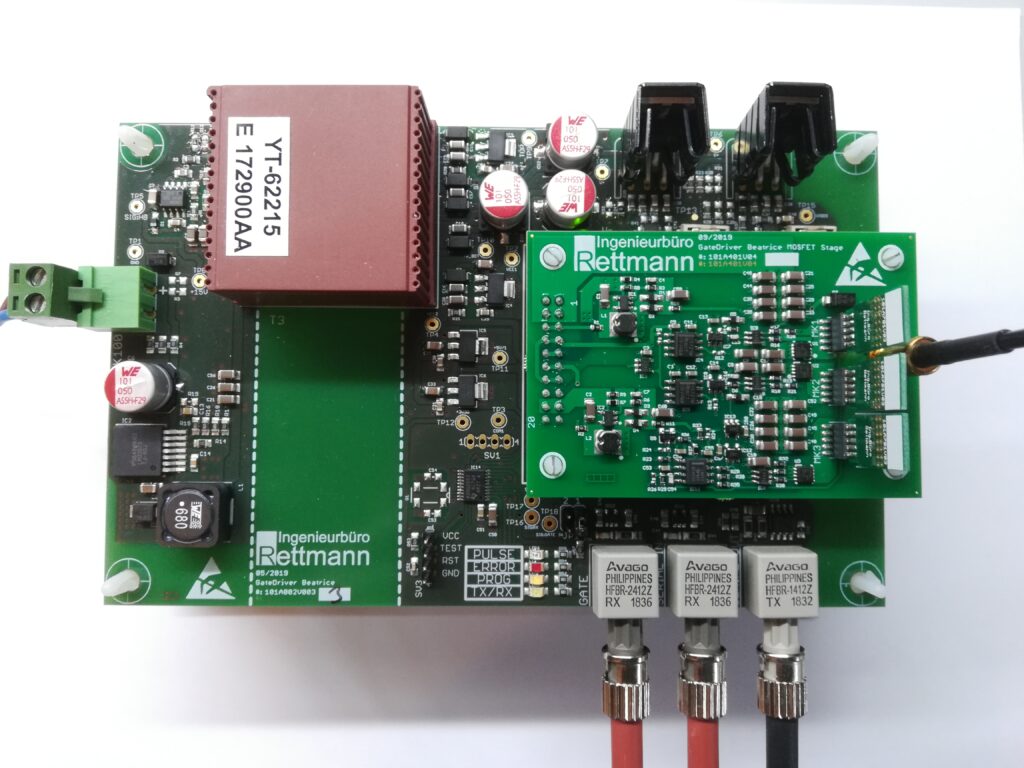

Laboratory Gate Driver „Beatrice“

Product Highlights

Programmable power supply, flexible test system

• Ready-to-use laboratory gate driver solution to characterize power modules up to 1700 V blocking voltage
• Independent programmable positive and negative gate voltage
  (-20 V … 0 V ; 0 V … +20 V)
• Easily exchangeable gate resistors
• High-performance N-Channel MOSFET stage
  (R_DS(on) 10 mΩ, high-speed switching)
• Real ±200 A peak output gate current at 0 Ohm
• Interchangeable gate driver stage
• Fiber-optic links
• Build-in DC/DC power supply
• One channel gate driver
• 2 W output power

Protection and Safety Features

• Reinforced insulation between primary and secondary side
• Miller-Clamping (R_DS(on) 10 mΩ)

Applications

• Power Laboratories
• Determining switching losses of power semiconductor (SiC, IGBT, etc.)
• Development platform to compare different gate driver ICs
• Testing of power electronic setups during operation

Description

The gate driver “Beatrice” is a flexible test system for power laboratories to analyze and characterize power modules, power semiconductors under configurable switching conditions, like gate voltages, gate resistors, and with different output stages.

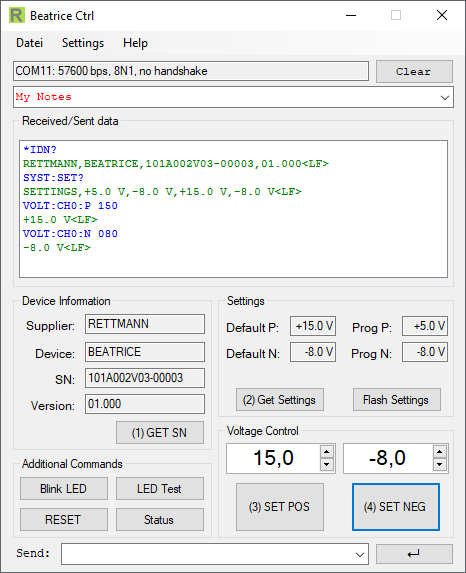

The gate driver features an optically isolated logic interface to transmit the gate signal and configure the gate voltages via a serial interface.
